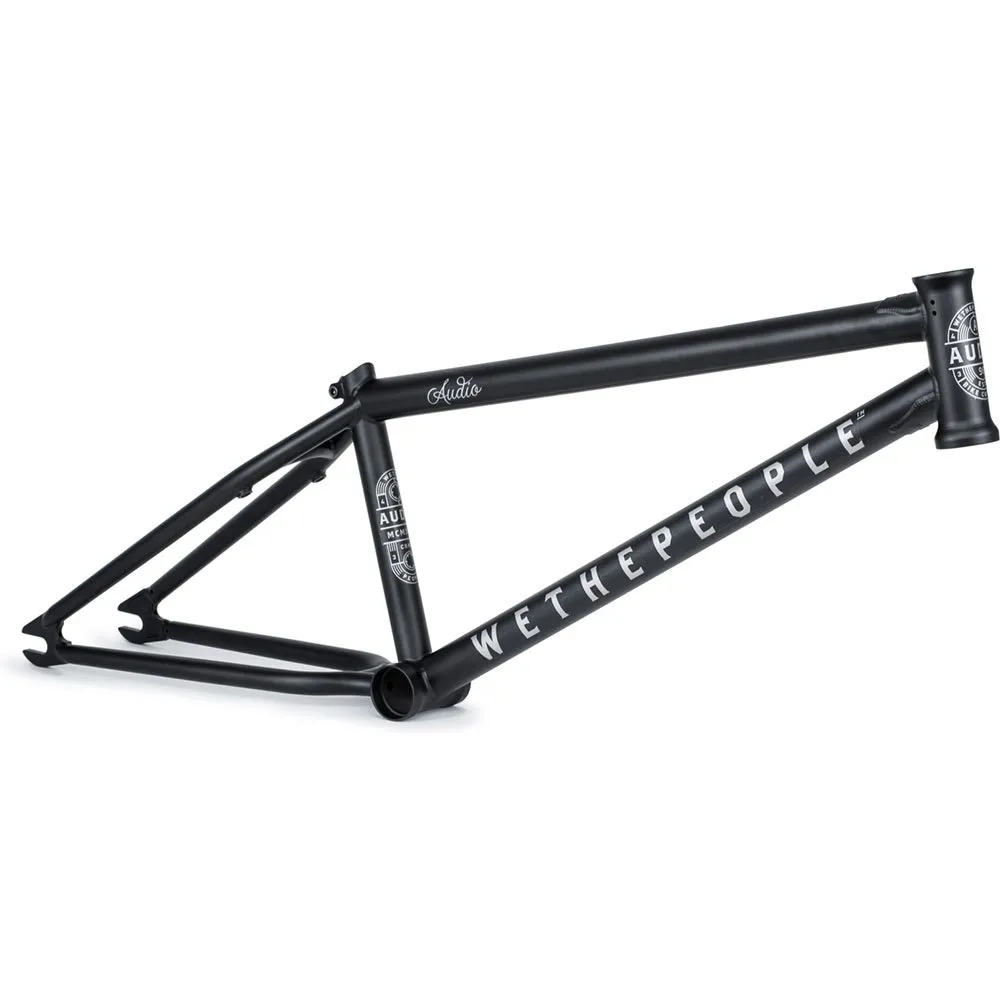

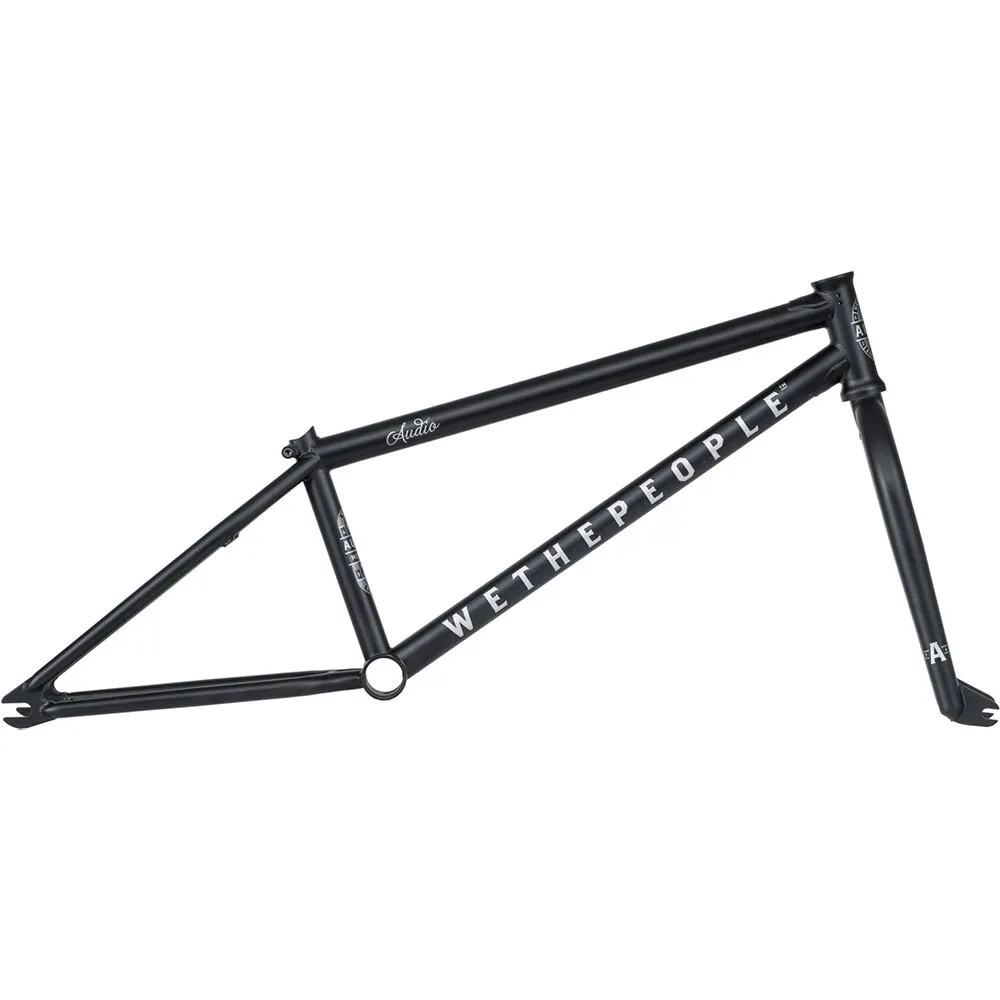

Wethepeople Audio 2020 BMX Frame

– TUBING:

butted, Japanese seamless 4130 crmo tubing.

– Toptube:

21,9´´ TT.

– Chainstay Length:

14,1´´-14,7´´.

– Angles:

HT:

74,5 °, ST:

71 °.

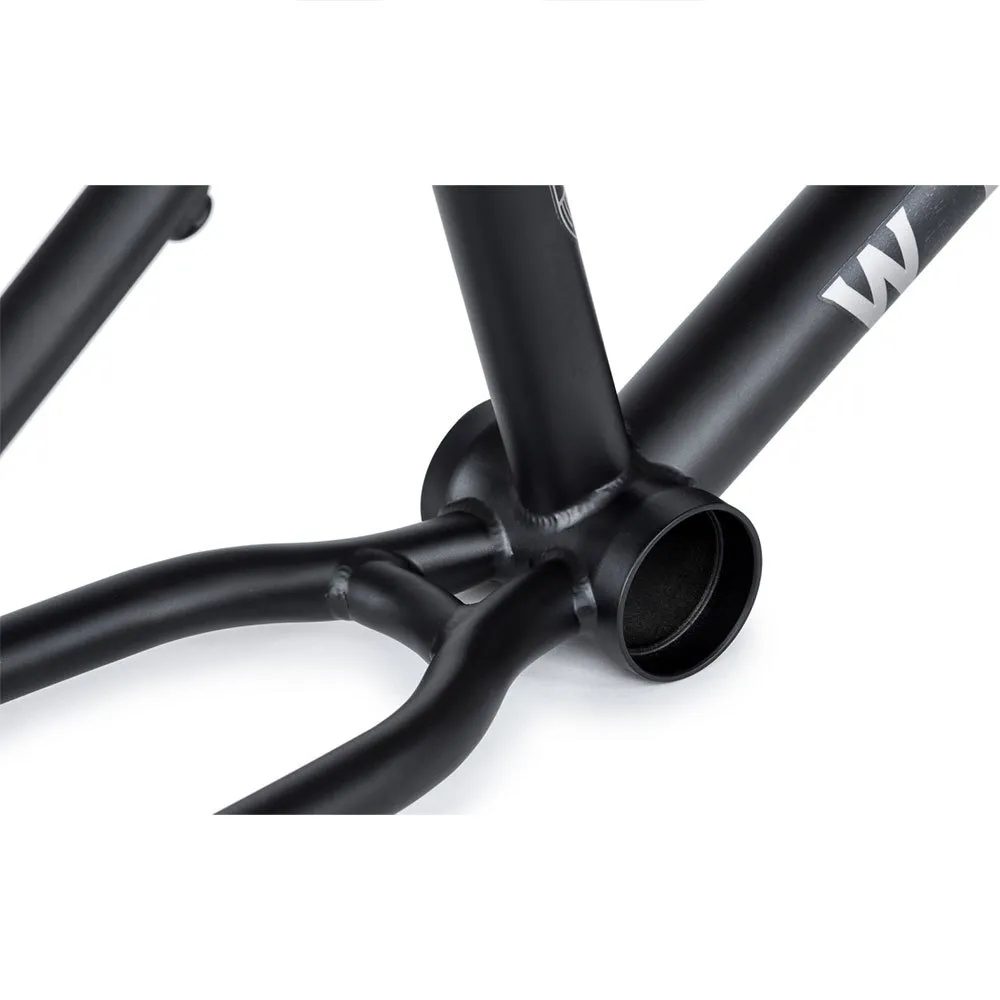

– BOTTOM BRACKET:

74mm mid size, cnc machined and heat-treated.

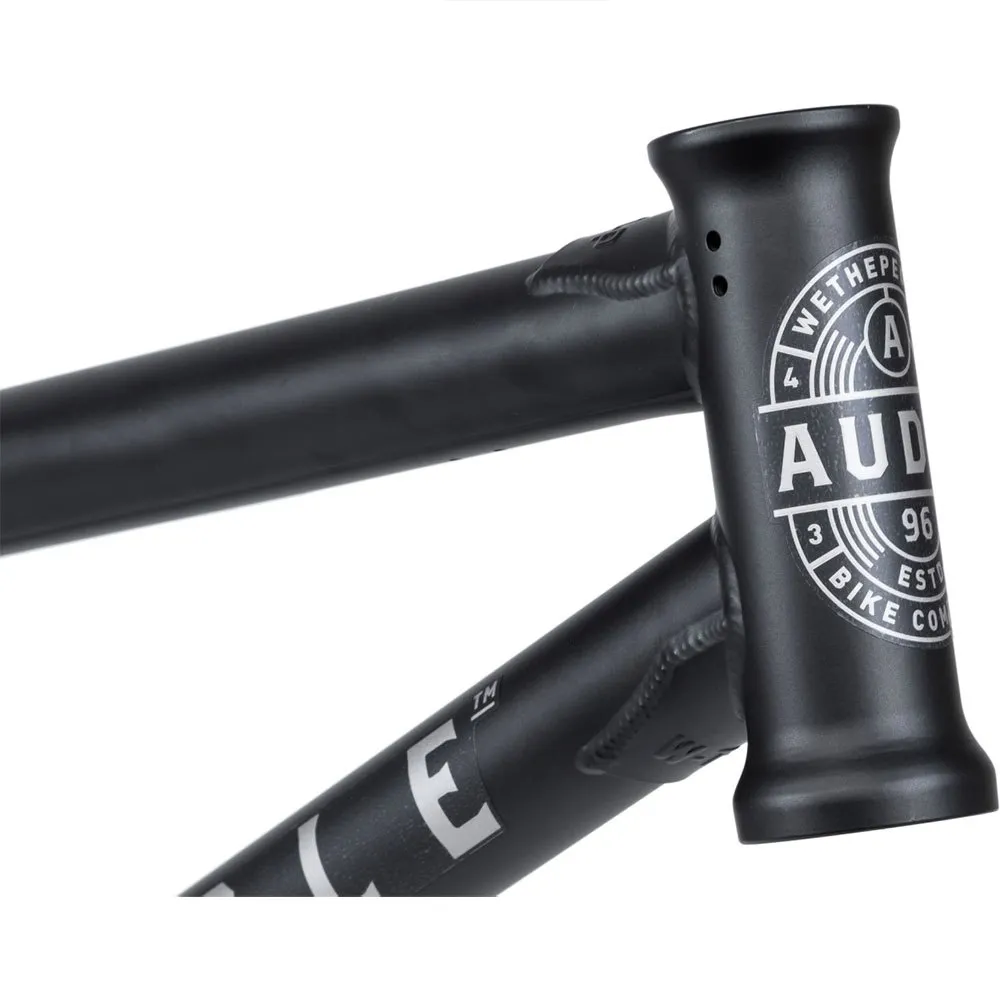

– HEAD TUBE:

125mm cnc machined and heat-treated, integ.

h-set, drilled for gyro tabs.

– DROPOUTS:

investment cast 7,5mm, integrated chain tensioners, heat-treated 4130 crmo.

– BRAKES:

pivot-3 removable brake mounts, frame comes without repl.

brake hardware.

-.

Features:

– all-round frame and fork kit designed for 22 wheels.

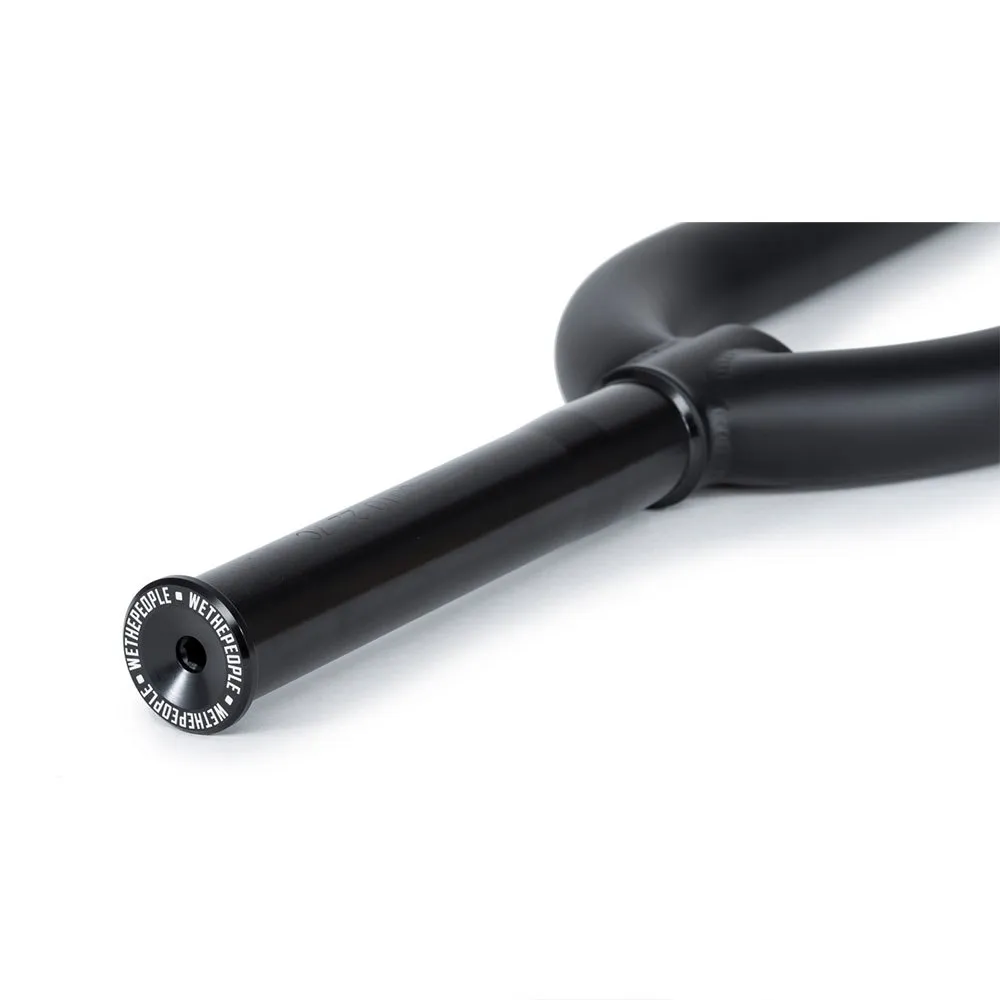

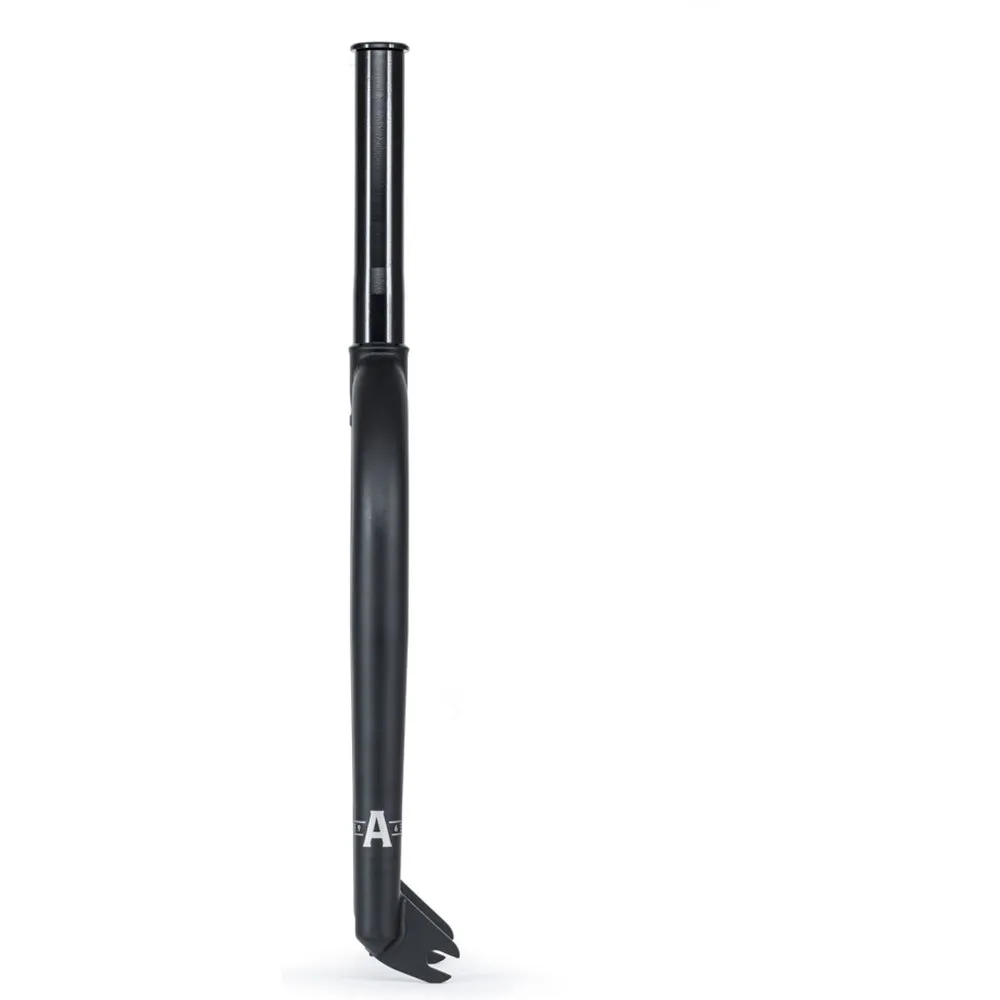

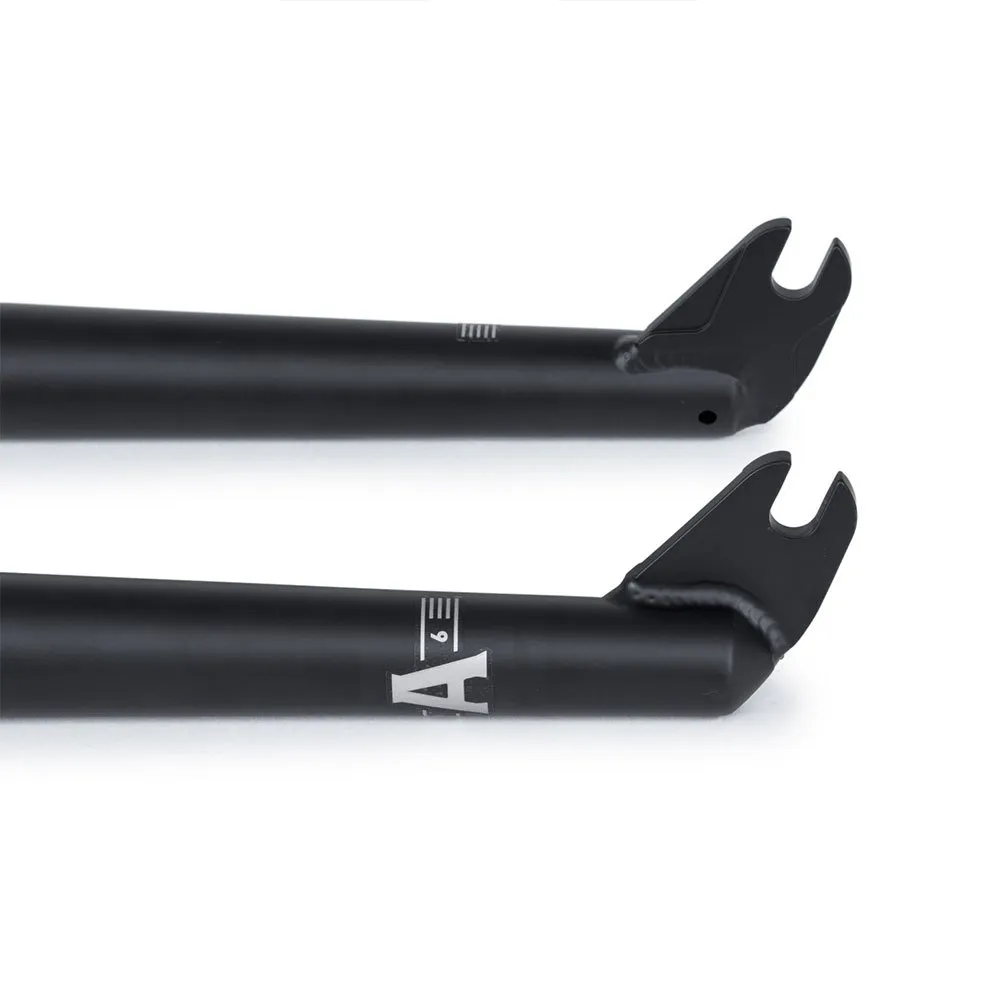

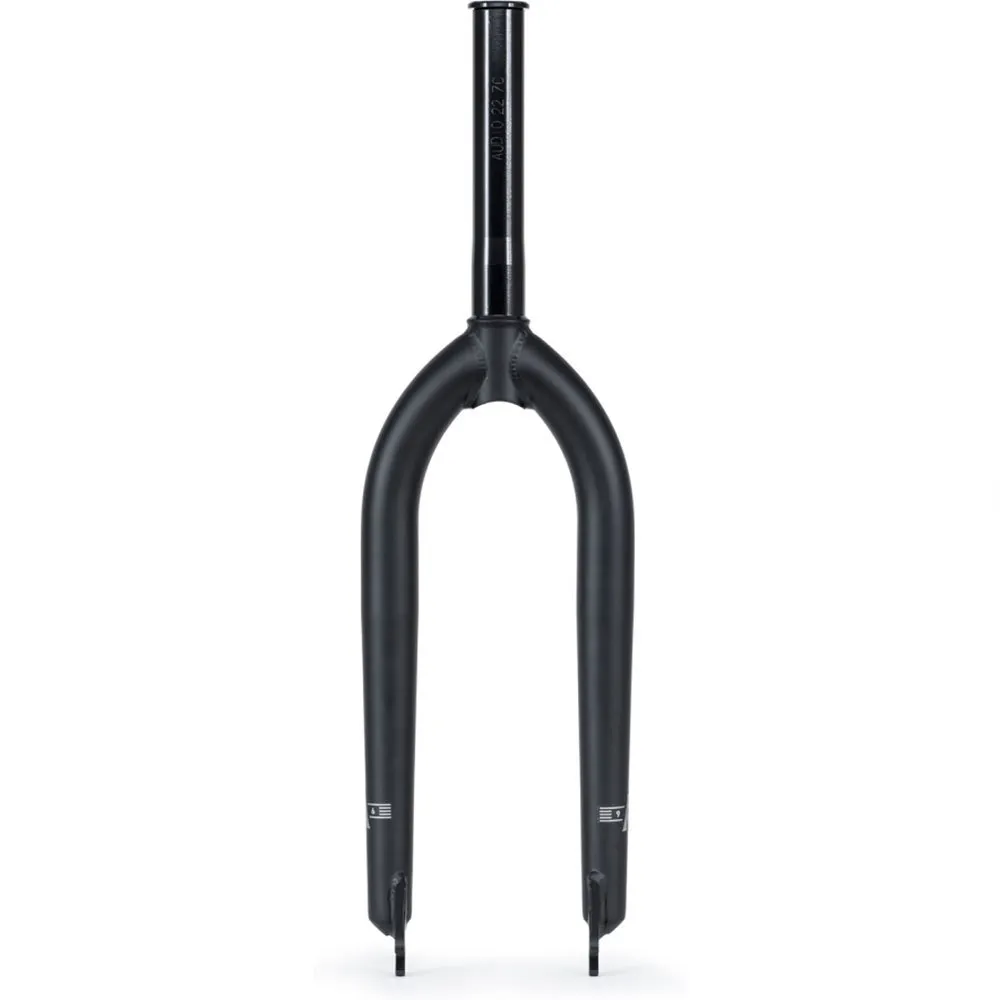

– includes WTP Patrol-style fork, full heat-treated, 32mm offset 22 fork.

– extruded top tube with integrated threads for cable guides.

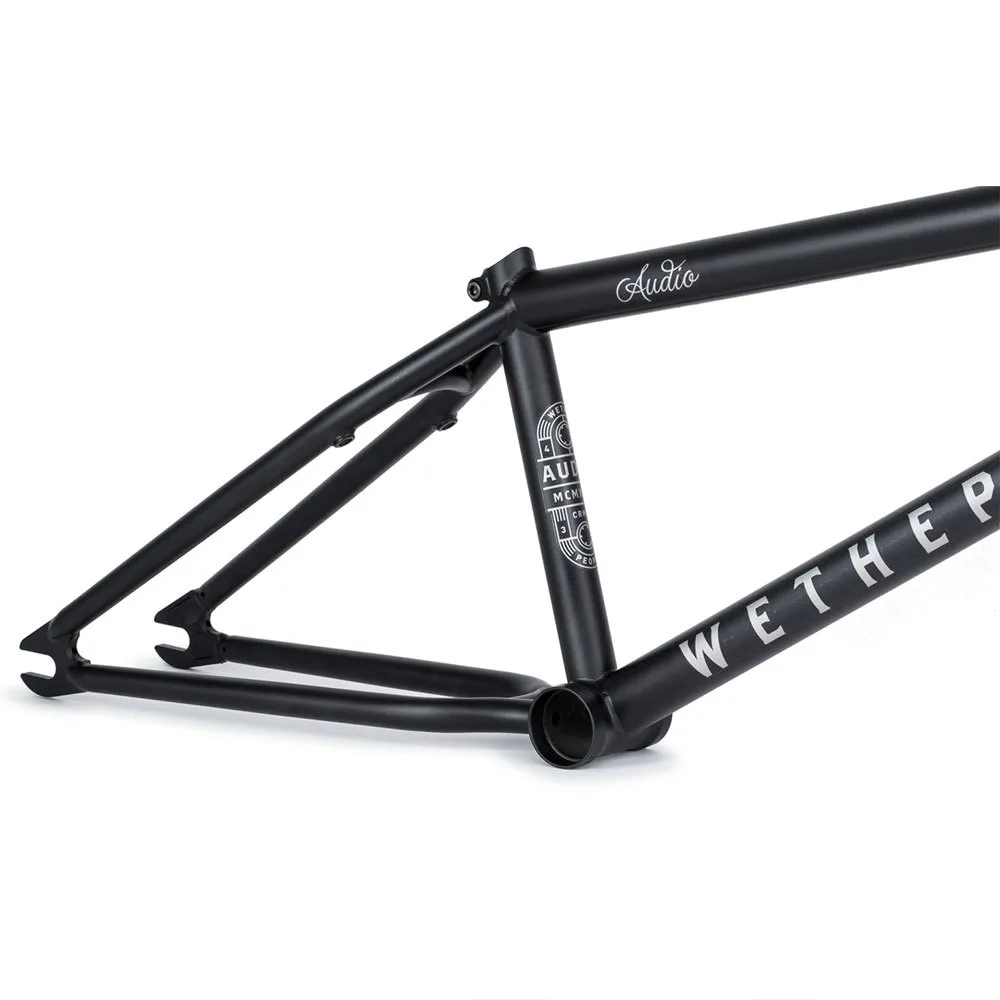

– curved seat stay bridge and chain stay bridge.

– wider rear triangle allows clearance for a 2,3´´ tire.

– WTP top tube and down tube gusset.

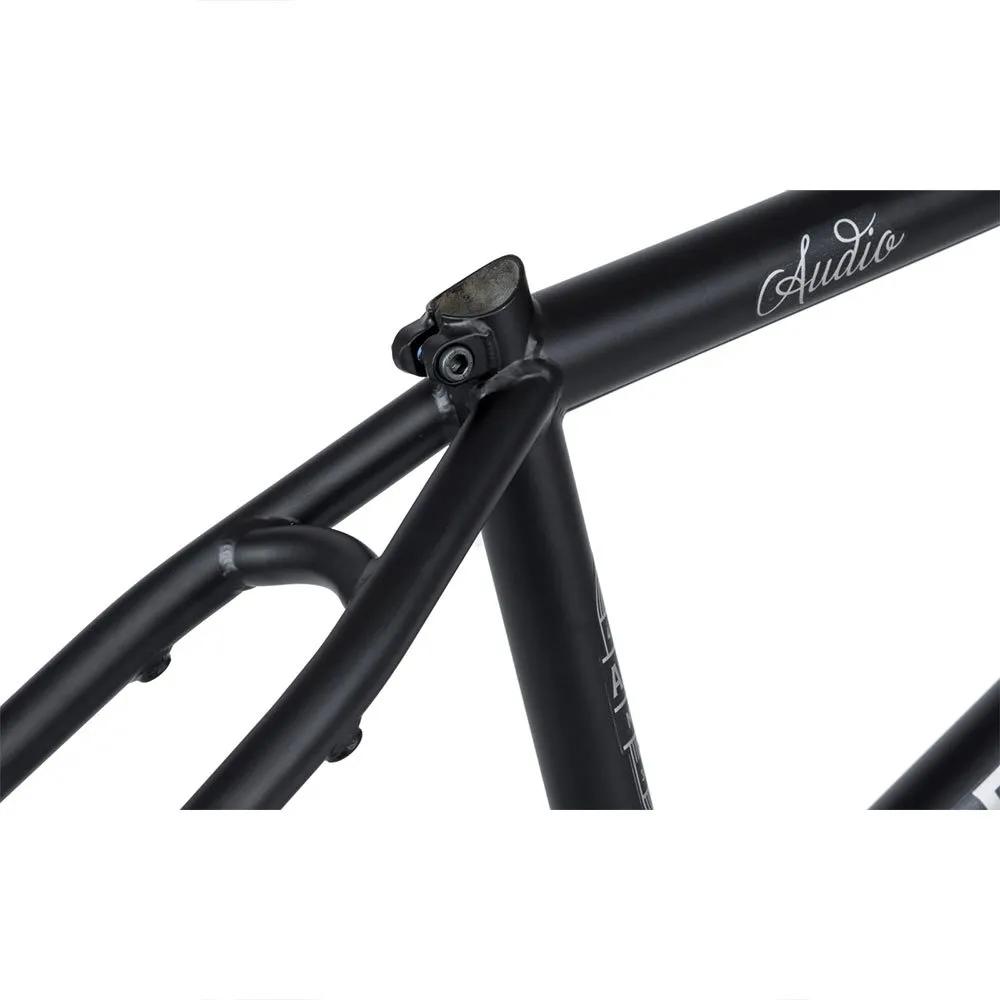

– 6mm seat clamp bolt.

– WEIGHT:

– frame:

2,65kg (5,85lbs).

– fork:

1,19kg (2,62lbs).

Features:

Color:matt black.

Frame Size:22 inch Top Tube.
