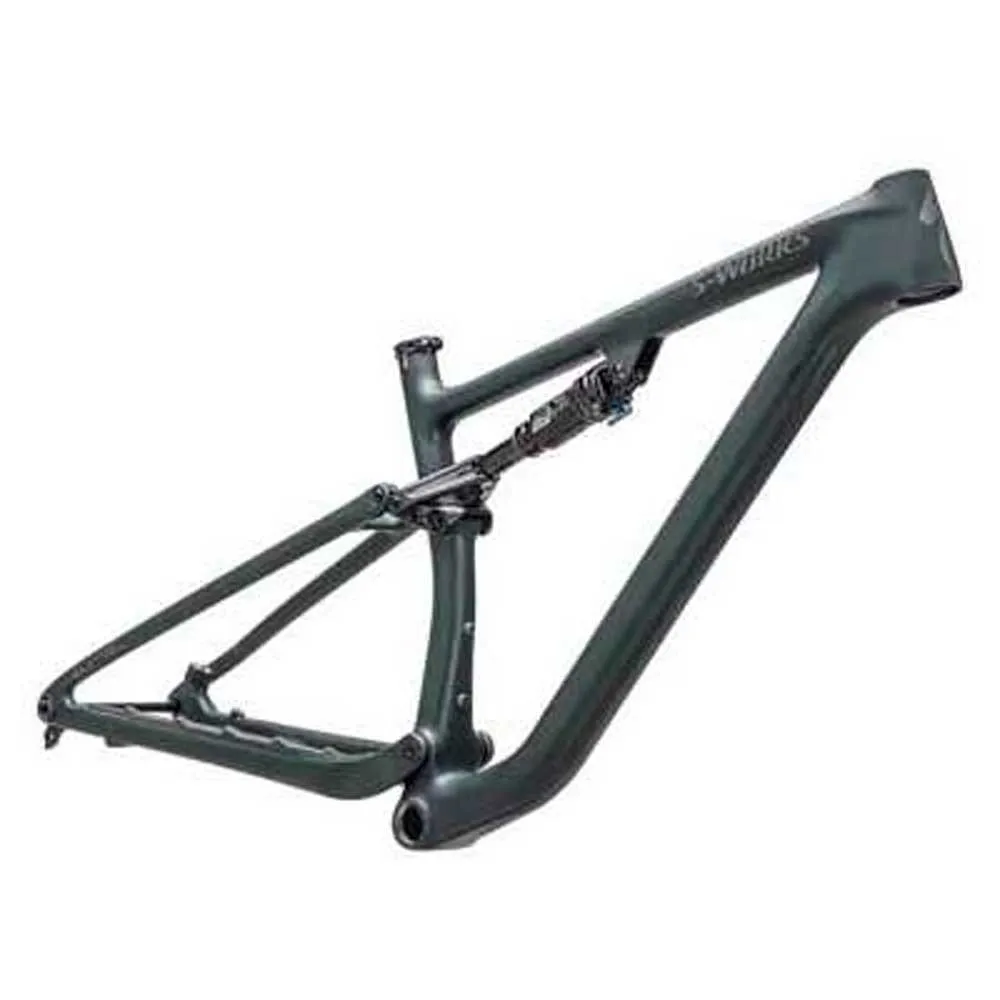

Specialized S-Works Epic Evo 2023 MTB Frame

Going all the way back to when inspiration for the EVO lineup was still waiting to be drawn from employee bike racks packed with hot-rodded Epics sporting shorter stems, wider bars and longer forks, Epic EVO has always been about taking the Epic’s unmatched pedaling efficiency, nimble handling and featherweight chassis and injecting an added dose of capability to make quick work of technical singletrack and demanding descents.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.

While the Epic EVO gains a seemingly modest 20 millimeters of front and 10 millimeters of rear travel over its Epic stablemate, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoah!’ as soon as you hit your first stretch of singletrack.

Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you´re able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.

Features:

– Flip It To Rip It: Tune the ride of the S-Works Epic EVO’s FACT 12m carbon frame to match your preferred handling features with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.

Specifications:

Suspension:
– Rear Shock: RockShox SID LUXE ULTIMATE, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm

Frameset:
– Frame: S-Works FACT 12m Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
– Seat Binder: Specialized Alloy 34.9, Titanium Bolt

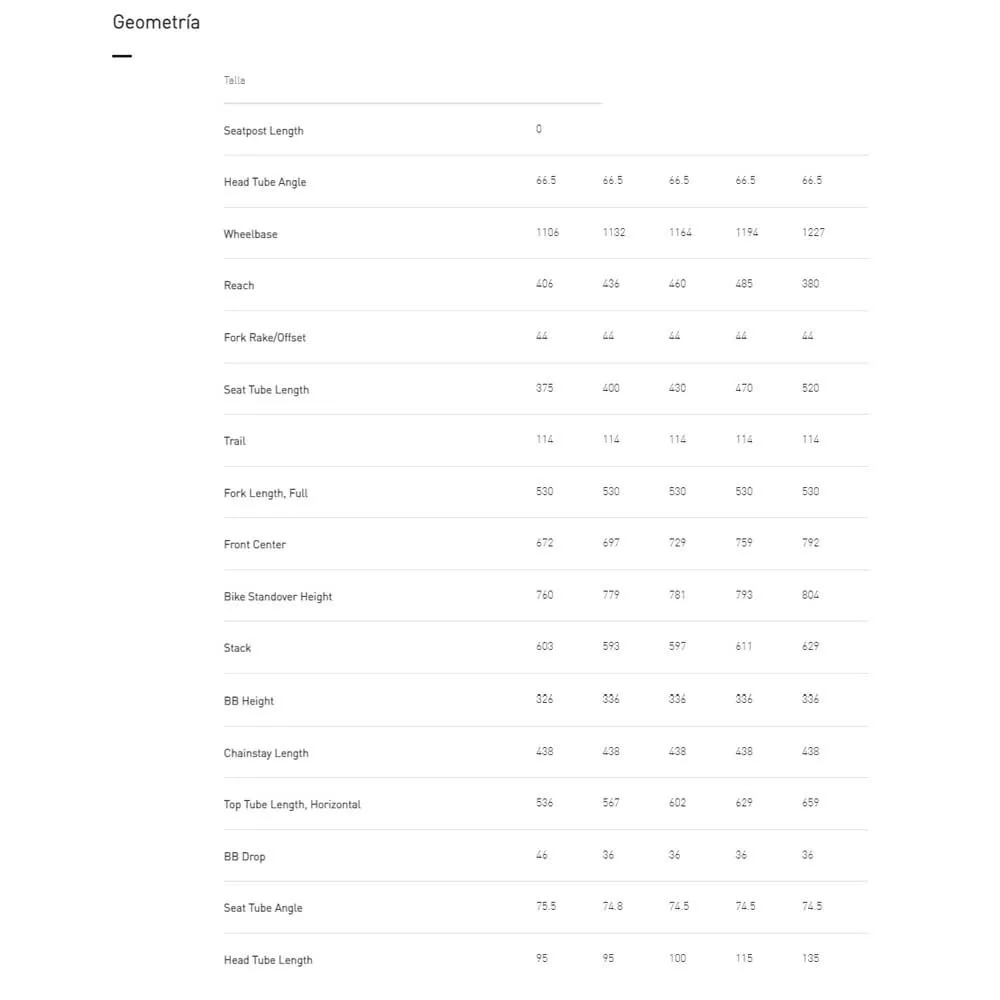

Geometry:
– Stack: 611mm
– Reach: 460mm
– Head Tube Length: 115mm
– Head Tube Angle: 66.5°
– BB Height: 336mm
– BB Drop: 36mm
– Trail: 114mm
– Fork Length, Full: 530mm
– Fork Rake/Offset: 44mm
– Front Centre: 759mm
– Chainstay Length: 438mm
– Wheelbase: 1194mm
– Bike Standover Height: 793mm
– Seat Tube Length: 470mm
– Seat Tube Angle: 74.5°
– Top Tube Length, Horizontal: 629mm
